VW8 Series Wall Mount Cabinet
The VW8 Series Wall Mount Cabinet is a compact, space-saving solution for network, security, and AV installations where equipment storage requirements are minimal. Featuring adjustable mounting rails, a removable locking front door, removable side panels, and multiple cable entry options, the VW8 Series provides secure equipment housing with convenient access for installation and maintenance.
★
Compact 18" deep enclosure
★ For Network, Security or A/V Installations
★ Optimized For Limited Space
★
132 lb. Load Capacity
Product Specifications
Product Type
Fixed Wall Mount Cabinet
Frame Material
19 Gauge Cold Rolled Steel
Finish
Black Powder Coat
Dimensions (H x W x D)
(Height Varies by Item #) × 22.4" × 17.7"
Rack Unit Quantity
6U, 9U, or 12U
Front Door
Removable, Reversible & Lockable Front Door, Opens Full 180° (Available in Steel Mesh or Tempered Glass)
Rear Panel
Wall Mounting Keyholes Spaced 16” Apart
Side Panels
Full Height, Lockable & Removable
Top Panel
Optional Fans and Knock-Out Type Cable Entry Holes
Bottom Panel
(6) Knock Out Cable Entry Holes
Equipment Support
(2) 18 Gauge Mounting Rails, 1.75” RU Spacing, Marked & Numbered On Rails; 19” W, EIA-310-D Universal Vertical Hole Spacing
Grounding
14 AWG Ground Wires Connect Door To Cabinet Frame
Max. Rail Depth
13.75"
Static Load Capacity
132 lbs.
Included Accessories
(10) 10-32 Mounting Screws with (20) Washers, (1) Grounding Kit, (3) Keys
Optional Accessories
Universal Cable Managers, Fans, Shelves & More
Compliance & Standards
RoHS, ANSI/EIA RS-310D, IEC60297-2 DIN41194; Part 1,
DIN41494; Part 7
DIN41494; Part 7
For complete specifications, dimensions, and accessory compatibility, download the product specification sheet.

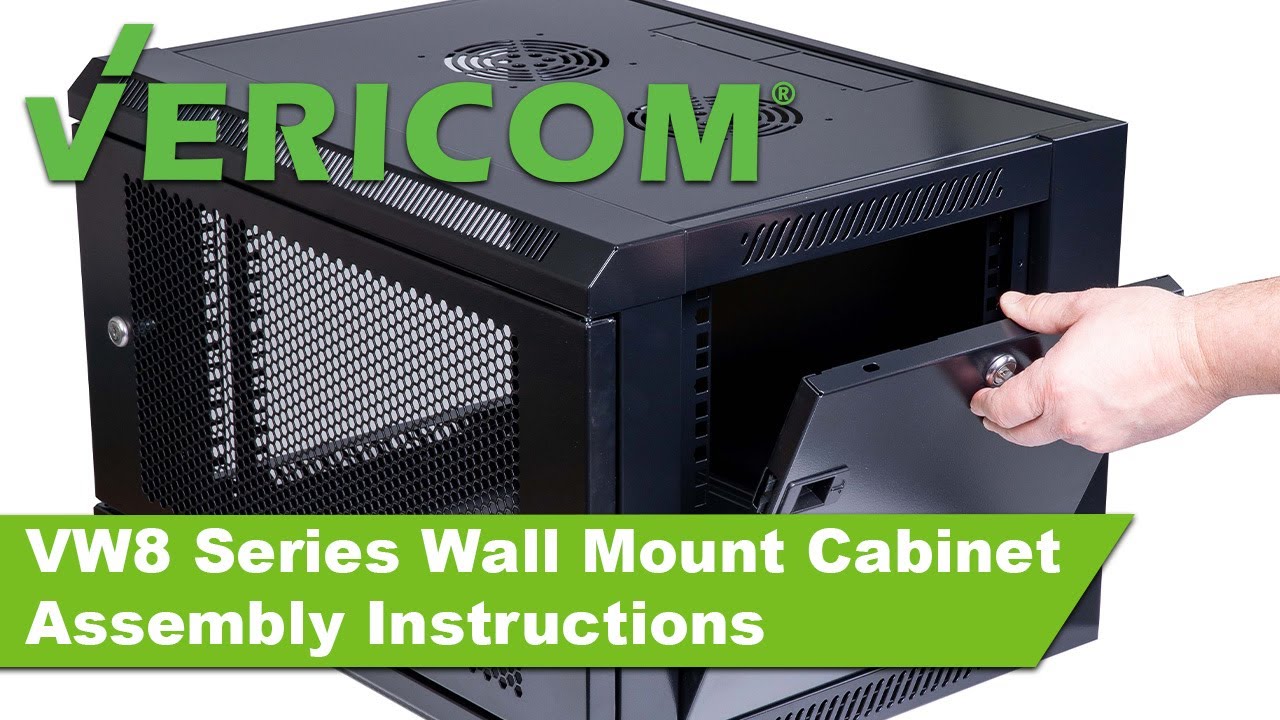

Assembly Video
