VW3 Series Wall Mount Cabinet

Options:

Designed for networking, security, and AV applications, the VW3 Series Wall Mount Cabinet delivers reliable equipment protection in a compact footprint. Rugged steel construction, flexible cable management, and lockable access panels make installation and maintenance simple.

★ Easy Access With Removable Panels

★ For Network, Security or A/V Installations

★ Fits Standard 19-Inch EIA Equipment

★ 132 lb. Load Capacity

Product Specifications

Product Type Fixed Wall Mount Cabinet

Frame Material 19 Gauge Cold Rolled Steel

Finish Black Powder Coat

Dimensions (H x W x D) (Height Varies by Item #) × 21.25" × 23.62"

Rack Unit Quantity 9U, 12U, or 15U

Front Door Removable, Reversible & Lockable Steel Frame With Full-Panel Acrylic Window; Opens 180°

Rear Panel 12” x 12” Removable Panel, Wall Mounting Keyholes Spaced 16” Apart, Multiple Lace Points

Side Panels Solid, Full Height & Removable

Top Panel Ventilation Holes For Optional Fan Units, (6) Knock-Out Cable Entry Holes Located at Back: (2) ¾”, (2) 1” and (2) 2” Knock-Outs

Bottom Panel (6) Knock Out Cable Entry Holes Located At Back: (4) 3" and (2) 1" Knock-Outs

Equipment Support Adjustable Depth Rails (3.25” Range), 1.75” RU Spacing, Marked & Numbered On Rails; 19” W, EIA-310-D Universal Vertical Hole Spacing; 10-32 Threaded Holes

Grounding 14 AWG Ground Wires Connect Door and Side Panels To Cabinet Frame

Static Load Capacity 132 lbs.

Included Accessories (48) 10-32 Mounting Screws & Washers, (1) Grounding Kit, (1) Paper Mounting Template, (2) Keys

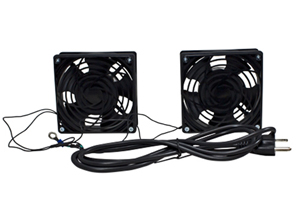

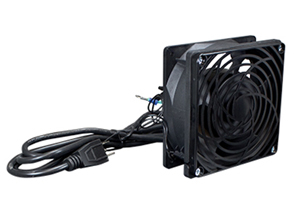

Optional Accessories Universal Cable Managers, Fans, Shelves, Rubber Grommet Kits & More

Compliance & Standards RoHS, ANSI/EIA RS-310D, IEC60297-2 DIN41194; Part 1,
DIN41494; Part 7

For complete specifications, dimensions, and accessory compatibility, download the product specification sheet.

Assembly Video
