Vericom VC3 Series SOHO / Remote Office Cabinet

Options:

The VC3 Series SOHO / Remote Office Cabinets provide enterprise-level security and capacity in a compact, space-saving design ideal for small offices and remote locations. Fully assembled and ready to deploy, they fit under desks or counters while supporting up to 1,500 lbs. of servers, networking, AV, and security equipment. Adjustable rails offer up to 29.5" of mounting depth, while vented doors improve airflow and locking panels, casters, and leveling feet provide secure, flexible installation.

★ Sized to Fit Under a Desk or Counter

★Server Depth

★High-Flow Vented Doors

★ 1,500 lb. Load Capacity

Product Specifications

Product Type SOHO / Remote Office Cabinet

Material Heavy Gauge Cold Rolled Steel

Finish Black Powder Coated

Dimensions (H x W x D) (Varies by Item #) x 23.625" x 31.5"

Rack Unit Quantity 8U, 12U or 24U

Front Door Removable, Reversible & Lockable High Flow Vented Steel, Opens Full 180°

Rear Door Removable, Reversible & Lockable High Flow Vented Steel, Opens Full 180°

Side Panels Solid, Full Height, Removable & Lockable

Top Panel (1) Vented Knockout For Optional Fan Unit, (2) Removable Cable Entry Slots Located At The Front and Back

Bottom Panel (5) 2.75” Wide Individually Removable Covers (Maximum 11” x 15” Opening), (2) Removable Cable Entry Slots at Front and Back

Equipment Support Two Pairs Of Mounting Rails, 1.75” RU Spacing, Marked & Numbered On Rails; 19” W, EIA-310-D Universal Vertical Hole Spacing; 10-32 Threaded Holes

Grounding 14 AWG Ground Wires Connect Door and Side Panels To Cabinet Frame

Static Load Capacity 1,500 Lbs.

Included Accessories (4) Adjustable Leveling Feet, (4) Casters, (4) Grounding Kits, (48) 10-32 Mounting Screws

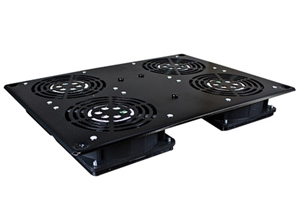

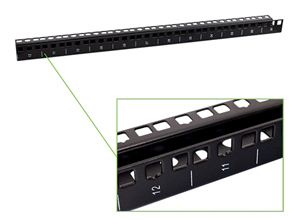

Optional Accessories RAFNQ04 (Top Mount Quad Fan, 300 CFM), RATSS01 (Solid Top Panel Insert), RARSC08/12/24 (8U, 12U, or 24U Cage Hole Rails, 4 Pk)

Compliance & Standards RoHS, ANSI/EIA RS-310D, IEC60297-2 DIN41194; Part 1, DIN41494; Part 7

For complete specifications, and dimensions, download the product specification sheet.

Product Resource Matrix

Available Downloads

All Models

12U

24U

Product Spec Sheet
