VV1 Series AV Cabinet (Cabinet Only)
The VV1 Series AV Cabinets provide a secure, flexible solution for professional AV installations. Fully assembled and built from heavy-gauge steel, they feature EIA-compliant mounting rails, lockable access, ventilation, and included casters with leveling feet for mobile or fixed deployments.The VV1 Series is a cabinet only solution, allowing the end user to add the accessories and equipment required for their specific project (accessories sold separately).
•
For Audio / Video Applications
•
Flexible & Secure
•Cabinet Only Solution
•
Static Load Capacity: 500 lb.
Product Specifications
Product Type
Audio / Video Cabinet
Material
Heavy Gauge Cold Rolled Steel
Finish
Black Powder Coated
Dimensions (H x W x D)
30.75 x 23.6" x 23.6"
Rack Unit Quantity
15U
Front Door
Removable, Reversible & Lockable Tempered Glass, Opens Full 180°
Rear Panel
(1) ¾ Height Solid Removable Panel, (1) ¼ Height Removable Cable Knockout
Side Panels
Solid, Full Height & Removable
Top Panel
(1) Solid Knockout, (1) Vented Knockout, (1) Removable Cable Entry Slot [Note: Removing The Solid Knockout & The Vented Knockout Allows For The Possibility of (2) Optional Double Fan Units]
Bottom Panel
(1) Solid Knockout, (1) Vented Knockout, (1) Removable Cable Entry Slot [Note: Removing The Solid Knockout & The Vented Knockout Allows For The Possibility of (2) Optional Double Fan Units]
Equipment Support
Two Pairs Of Mounting Rails, Adjustable Depth Rails (16.25” - 22”); 1.75” RU Spacing, Marked & Numbered On Rails; 19” W, EIA-310-D Universal Vertical Hole Spacing; 10-32 Threaded Holes
Grounding
14 AWG Ground Wires Connect Door To Cabinet Frame
Static Load Capacity
500 Lbs.
Included Accessories

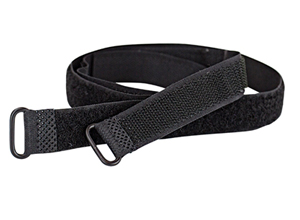

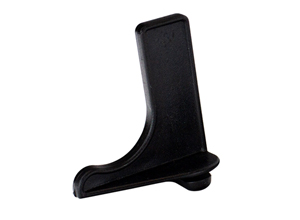

(4) Adjustable Leveling Feet, (4) Casters, (3) Shelf Straps, (3) Shelf Backstops, (1) Grounding Kit, (16) 10-32 Mounting Screws
Compliance & Standards
RoHS, ANSI/EIA RS-310D, IEC60297-2 DIN41194; Part 1, DIN41494; Part 7
For complete specifications, and dimensions, download the product specification sheet.
