VC5 Series Server Cabinets

Robust Infrastructure for Scalable Growth

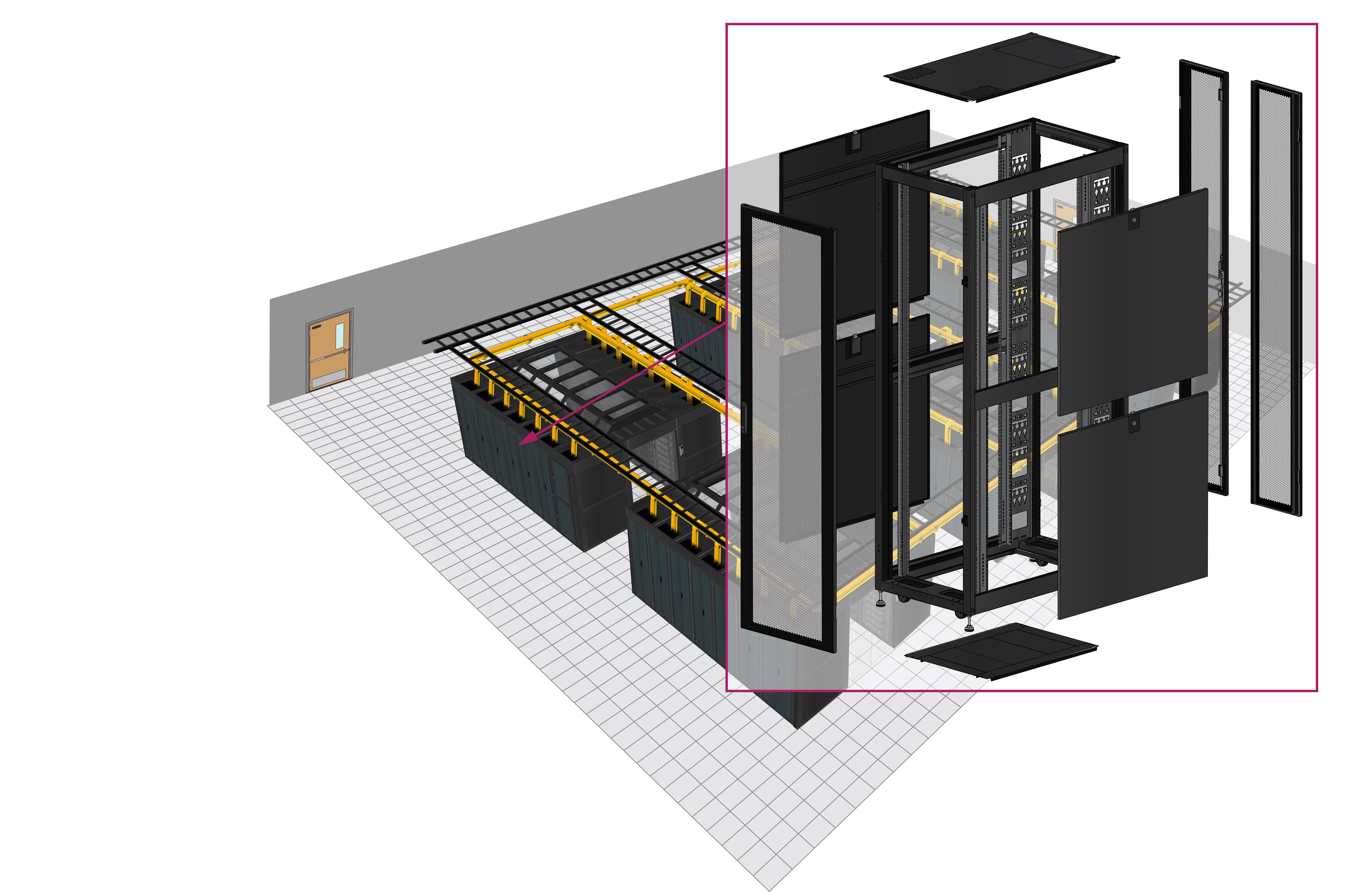

The VC5 Series Server Cabinets offer a robust, feature-rich platform engineered for high-density environments. With a 24-inch wide footprint, these cabinets are designed to scale effortlessly—whether you're launching a new data center or upgrading an existing infrastructure. Their adaptable architecture supports a broad selection of size configurations and accessories, making it easy to meet the demands of evolving workloads and dynamic IT landscapes.

For more information on our server cabinets please download our Rack & Cabinet Systems Guide.

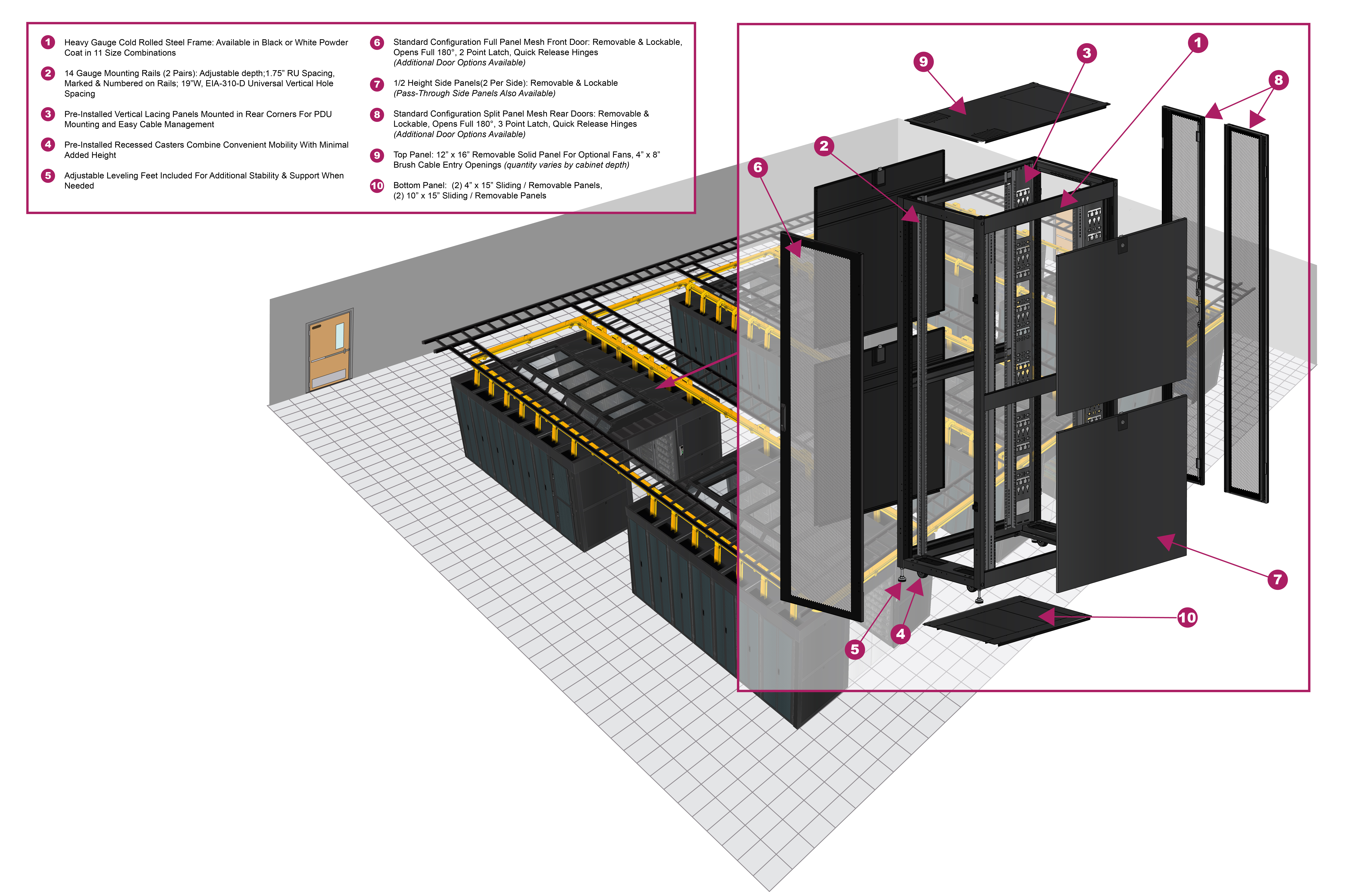

1

Heavy Gauge Cold Rolled Steel Frame:
Available in Black or White Powder Coat in 11 Size Combinations

2

14 Gauge Mounting Rails (2 Pairs):
Adjustable depth; 1.75" RU Spacing, Marked and Numbered On Rails; 19"W, EIA-310-D Universal Vertical Hole Spacing

3

Pre-Installed Vertical Lacing Panels:
Mounted in Rear Corners for PDU Mounting & Easy Cable Management

4

Pre-Installed Recessed Casters Combine Convenient Mobility With Minimal Added Height

5

Adjustable Leveling Feet Included For Additional Stability and Support When Needed

6

Standard Configuration Full Panel Mesh Front Door: Removable and Lockable, Opens Full 180°, 2 Point Latch, Quick Release Hinges (Additional Door Options Available)

7

1/2 Height Side Panels (2 Per Side): Removable and Lockable, (Pass-Through Side Panels Also Available)

8

Standard Configuration Split Panel Mesh Rear Doors: Removable and Lockable, Opens Full 180°, 3 Point Latch, Quick Release Hinges (Additional Door Options Available)

9

Top Panel: 12" x 16" Removable Solid Panel For Optional Fans, 4" x 8" Brush Cable Entry Openings (Quantity Varies By Cabinet Depth)

10

Bottom Panel: (2) 4" x 15" Sliding / Removable Panels, (2) 10" x 15" Sliding / Removable Panels



Server Cabinet Options

Standard Configurations (Stocked Options)

Item Number	Dimensions	Front Door	Rear Door	Cabinet Top	Color	Assembly	Spec Sheet	Tech Drawing
VC5-6842-ABS1A	24”W x 31.5”D x 42U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-6845-ABS1A	24”W x 31.5”D x 45U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-6A24-ABS1A	24”W x 42”D x 24U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-6A42-ABS1A	24”W x 42”D x 42U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-6A45-ABS1A	24”W x 42”D x 45U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-6A45-ABV1F	24”W x 42”D x 45U	High Density Vented	High Density Vented Split	Vented	Black	Flat Packed
VC5-6A45-ABS2A	24”W x 42”D x 45U	High Density Vented	High Density Vented Split	Solid	White	Pre-Assembled
VC5-6A48-ABS1A	24”W x 42”D x 48U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-6A48-ABS2A	24”W x 42”D x 48U	High Density Vented	High Density Vented Split	Solid	White	Pre-Assembled
VC5-6A52-ABV1F	24”W x 42”D x 52U	High Density Vented	High Density Vented Split	Vented	Black	Flat Packed
VC5-6242-ABS1A	24”W x 48”D x 42U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-6245-ABS1A	24”W x 48”D x 45U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-6245-ABS2A	24”W x 48”D x 45U	High Density Vented	High Density Vented Split	Solid	White	Pre-Assembled
VC5-6248-ABS1A	24”W x 48”D x 48U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-6248-ABS2A	24”W x 48”D x 48U	High Density Vented	High Density Vented Split	Solid	White	Pre-Assembled
VC5-6252-ABV1F	24”W x 48”D x 52U	High Density Vented	High Density Vented Split	Vented	Black	Flat Packed

Click on the item SKUs above for additional information about specific products or contact your Vericom representative.

Special Order Item Number Structure for VC5 Server Cabinets - 24" (600mm) Width
