VGS™ Solutions In A Virtual Data Center
VC5 Series Colocation Cabinets
Secure, Segmented, and Future-Ready
Vericom’s Colocation Cabinets are designed to meet the unique needs of colocation hosts and their clients. Each cabinet can securely house ICT equipment for two tenants within a single footprint—ensuring physical separation, equipment protection, and monitoring capabilities. And when business needs shift, these cabinets can be easily converted back to a standard single-tenant configuration, offering long-term adaptability without sacrificing security.
For more information on our colocation cabinets please download our Rack & Cabinet Systems Guide.

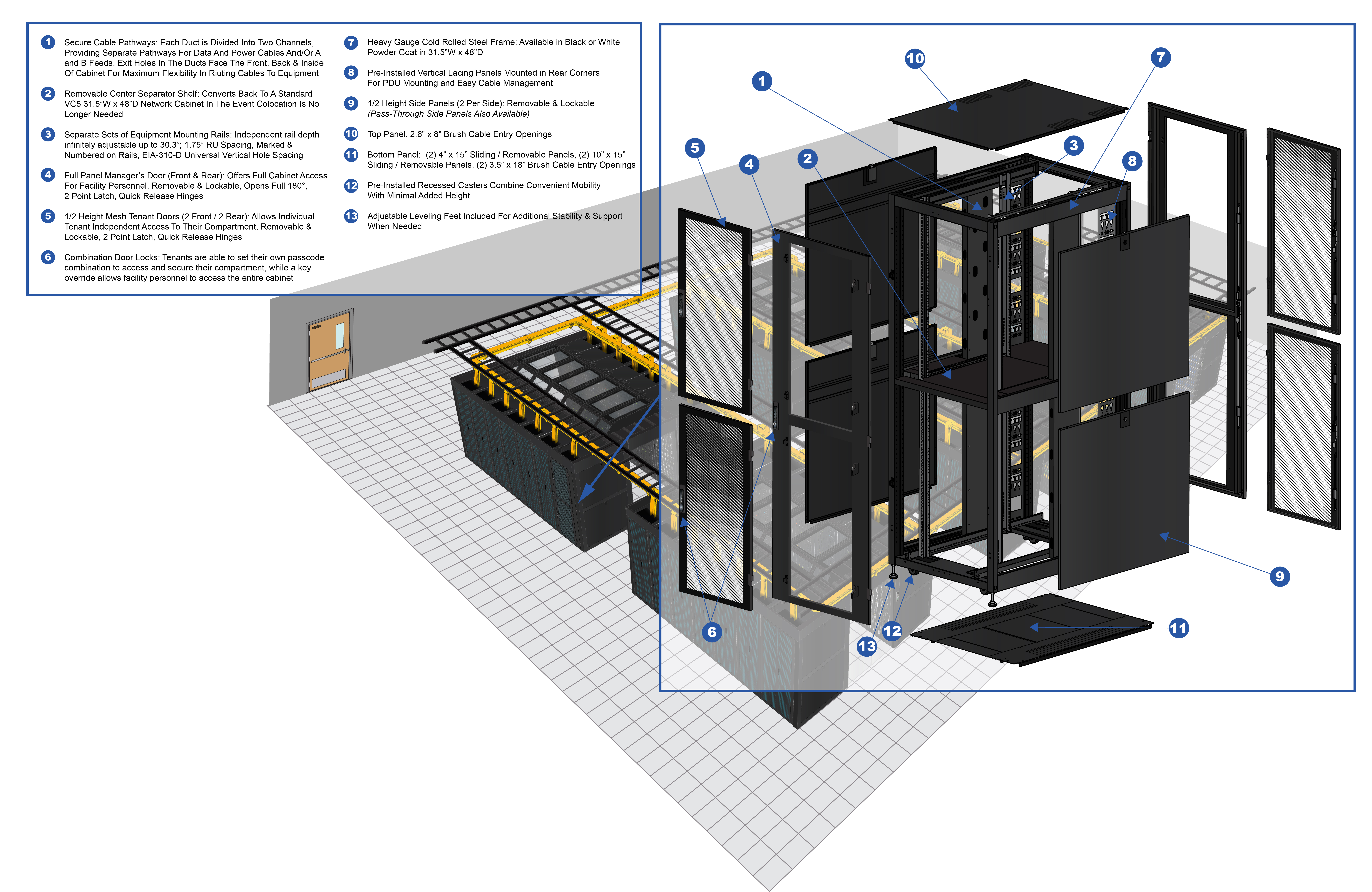

Secure Cable Pathways: Each Duct Is Divided Into Two Channels, Providing Separate Pathways for Data and Power Cables and/or A And B Feeds. Exit Holes in the Ducts Face the Front, Back & Inside of Cabinet for Maximum Flexibility in Routing Cables to Equipment.
Removable Center Separator Shelf: Converts Back to a Standard VC5 31.5"W x 48"D Network Cabinet in the Event Colocation is No Longer Needed.
Separate Sets of Equipment Mounting Rails:
Independent Rail Depth Infinitely Adjustable up to 30.3"; 1.75" RU Spacing, Marked & Numbered on Rails; EIA-310-D Universal Vertical Hole Spacing
Full Panel Manager's Door (Front & Rear): Offers Full Cabinet Access For Facility Personnel, Removable & Lockable, Opens Full 180°, 2 Point Latch, Quick Release Hinges
1/2 Height Mesh Tenant Doors (2 Front / 2 Rear): Allows Individual Tenant Access to Their Compartment, Removable & Lockable, 2 Point Latch, Quick Release Hinges
Combination Door Locks: Tenants are Able to Set Their Own Passcode Combination to Access and Secure Their Compartment, While a Key Override Allows Facility Personnel to Access the Entire Cabinet.
Heavy Gauge Cold Rolled Steel Frame:
Available in Black or White Powder Coat in 31.5"W x 48"D
Pre-Installed Vertical Lacing Panels:
Mounted in Rear Corners for PDU Mounting & Easy Cable Management
1/2 Height Side Panels (2 Per Side): Removable & Lockable (Pass-Through Side Panels Also Available)
Top Panel: 2.6" x 8" Brush Cable Entry Openings
Bottom Panel: (2) 4" x 15" Sliding / Removable Panels, (2) 10" x 15" Sliding / Removable Panels, (2) 3.5" x 18" Brush Cable Entry Openings
Pre-Installed Recessed Casters
Combine Convenient Mobility With Minimal Added Height
Adjustable Leveling Feet Included For Additional Stability and Support When Needed
Colocation Cabinet Options
| Item Number | Description | Spec Sheet | Tech Drawing | |
|---|---|---|---|---|
| VC5-82481A | VC5 Colo Cabinet, 31.5”W x 48”D (48U, Assembled – Black) |  |
|
|
| VC5-82482A | VC5 Colo Cabinet, 31.5”W x 48”D (48U, Assembled – White) | |
|
| Item Number | Description | Spec Sheet | |
|---|---|---|---|
| RACOFCM4 | Vertical Finger Management Panels for Colocation Cabinets - 4 pc. set (Special Order) | ||
| VC5SP-12481 | Side Panel w/Pass-Through Holes- Black (48U x 48"D) | |
|
| VC5SB-12481 | Side Panel w/Brush Pass-Through Holes- Black (48U x 48"D) | |
|
| VC5T1-8121 | Standard Configuration VC5 Top Panel – Black (Special Order) | ||
| VC5T1-8122 | Standard Configuration VC5 Top Panel – White (Special Order) | ||
| VC5T2-8121 | VC5 Top Panel With Cable Runway Mounting Holes- Black (Special Order) | ||
| VC5T2-8122 | VC5 Top Panel With Cable Runway Mounting Holes- White (Special Order) | ||
| RABPSS1 | 1U Solid Steel Blanking Panel, Single | |
|
| RABPSS2 | 2U Solid Steel Blanking Panel, Single | |
|
| RABPSS3 | 3U Solid Steel Blanking Panel, Single | |
|
| RABPSS4 | 4U Solid Steel Blanking Panel, Single | |
|
| RAMPFD1 | 1U Plastic Finger Duct Cable Manager | |
|
| RAMPFD2 | 2U Plastic Finger Duct Cable Manager | |
|
| RAMP5D1 | 1U Plastic D-Ring Cable Manager | |
|
| RAMSFD1 | 1U Steel Finger Duct Cable Manager | |
|
| RAMS5D1 | 1U Steel D-Ring Cable Manager | |
|
| RAMS5D2 | 2U Steel D-Ring Cable Manager | |
|
| RAMPRG1 | Plastic Snap-In Cable Management Ring (Bag of 10) | |
|
| RAS2450 | 12-24 Screws (Bag of 50) | ||
| RAS3250 | 10-32 Screws (Bag of 50) | ||
| RAC2450 | 12-24 Cage Nuts (Bag of 50) | ||
| RAC3250 | 10-32 Cage Nuts (Bag of 50) |
| Item Number | Description | ||
|---|---|---|---|
| VC5DA-8481 | 48U VC5 Full Panel Mesh Door-Black (Special Order) | ||
| VC5DA-8482 | 48U VC5 Full Panel Mesh Door-White (Special Order) | ||
| VC5DB-8481 | 48U VC5 Full Size Split Mesh Doors-Black (Special Order) | ||
| VC5DB-8482 | 48U VC5 Full Size Split Mesh Doors-White (Special Order) | ||
| VC5DC-8481 | 48U VC5 Full Size High Flow Mesh Door-Black (Special Order) | ||
| VC5DC-8482 | 48U VC5 Full Size High Flow Mesh Door-White (Special Order) | ||
| VC5DD-8481 | 48U VC5 Full Size Solid Steel Door-Black (Special Order) | ||
| VC5DD-8482 | 48U VC5 Full Size Solid Steel Door-White (Special Order) | ||
| VC5DE-8481 | 48U VC5 Full Size Acrylic Window Door-Black (Special Order) | ||
| VC5DE-8482 | 48U VC5 Full Size Acrylic Window Door-White (Special Order) | ||
| FB48CG | 48U Cage Hole Rails (4 Pack) | ||
| FB48TH | 48U 10-32 Tapped Rails (4 Pack) |
Click on the item SKUs for additional information about specific products or contact your Vericom representative. Not all accessories available are listed. Special order items may not be available on website and will require contacting a Vericom representative for further details.
