Wire Basket Tray Depth Guide
Choose the right size for your application. Compare 2", 4", and 6" tray depths to match your cable volume, environment, and future growth needs.
When selecting a wire basket tray, depth is a critical design factor because it directly impacts cable capacity, support, accessibility, and future scalability. A tray that is too shallow may quickly become overcrowded, making cable management more difficult and limiting space for future additions. Conversely, a deeper tray provides greater cable volume, helps maintain proper cable organization and bend radius, and supports long-term growth without requiring costly pathway modifications. Understanding the differences between 2-inch, 4-inch, and 6-inch tray depths ensures the cable pathway is appropriately sized for both current requirements and future expansion, resulting in a more efficient and maintainable infrastructure.
Quick Comparison Guide

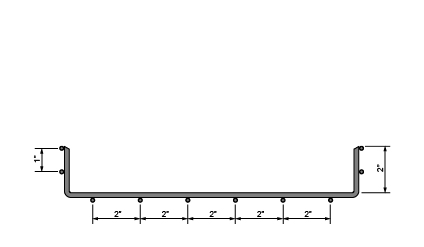

2 Inch Depth
- Best for: Closets, Light Cabling
- Capacity: Low
- Growth: Limited
- Cable Types: Small Copper Bundles
- Stocked Widths: 4", 12", & 18"
- Finish Options: BP* or EG*
⚠️ Watch Out: Overfills Quickly

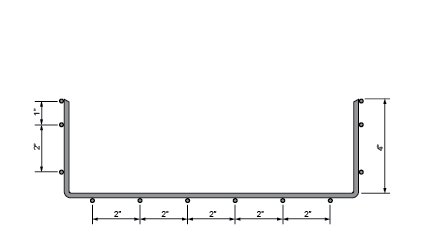

4 Inch Depth
- Best for: General Enterprise Use
- Capacity: Medium
- Growth: Moderate
- Cable Types: Mixed Fiber + Copper
- Stocked Widths: 12", 16", & 18"
- Finish Options: BP*
⭐ Most Commonly Used

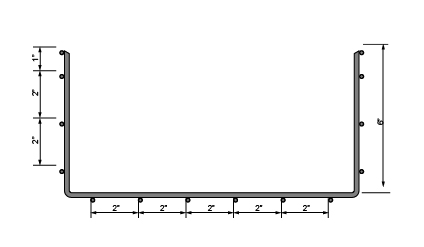

6 Inch Depth
- Best for: Data Centers, Backbone
- Capacity: High
- Growth: Excellent
- Cable Types: High-Density Fiber + Copper
- Not Stocked: Call To Order
- Finish Options: BP*
📈 Best for Scalability
*BP = Black Powder Coat *EG = Electrogalvanized Zinc
Don't see your size?
Contact us for additional custom-order sizes and personalized solutions.
How to Choose
| Consideration | 2 Inch Depth | 4 Inch Depth | 6 Inch Depth |
|---|---|---|---|
| 📈 Future Growth | Minimal Expansion Capability | Capacity for Future Expansion | Long-Term Scalability & Network Growth |
| 🔌 Cable Density | Light Cable Counts | Moderate Density Installations | High-Density Fiber & Copper Deployments |
| 🌡️ Airflow & Heat Management | Can Restrict Airflow in Dense Pathways | Improved Airflow Around Cable Bundles | Best Airflow Performance in Hot Environments |
| 🔀 Cable Organization | Single-Layer Cable Runs | Basic Cable Separation & Organization | Structured Layering for Large Cable Volumes |
| 💡 Ideal Application | Small, Static Installs | Most Projects | High-Density + Growth |
💡 Best Practice:
Plan for 25% to 50% extra capacity when selecting tray depth.
Additional Technical Specifications
| Length | 118.11 in. (3 m) |
|---|---|
| Material | High Strength Carbon Wire |
| Wire Diameter | 0.197 in. (5 mm) |
| Standards & Compliance | IEC 61537 |
