VC5 Network Cabinets

Purpose-Built for Cable-Heavy Environments

Our VC5 Network Cabinets are designed to handle the large cable bundles associated with network switches and patch panels. At 31.5 inches wide, these cabinets support a variety of vertical cable management options, making it easy to organize, route, and protect cables throughout the rack—without compromising accessibility or performance.

For more information on our network cabinets please download our Rack & Cabinet Systems Guide.

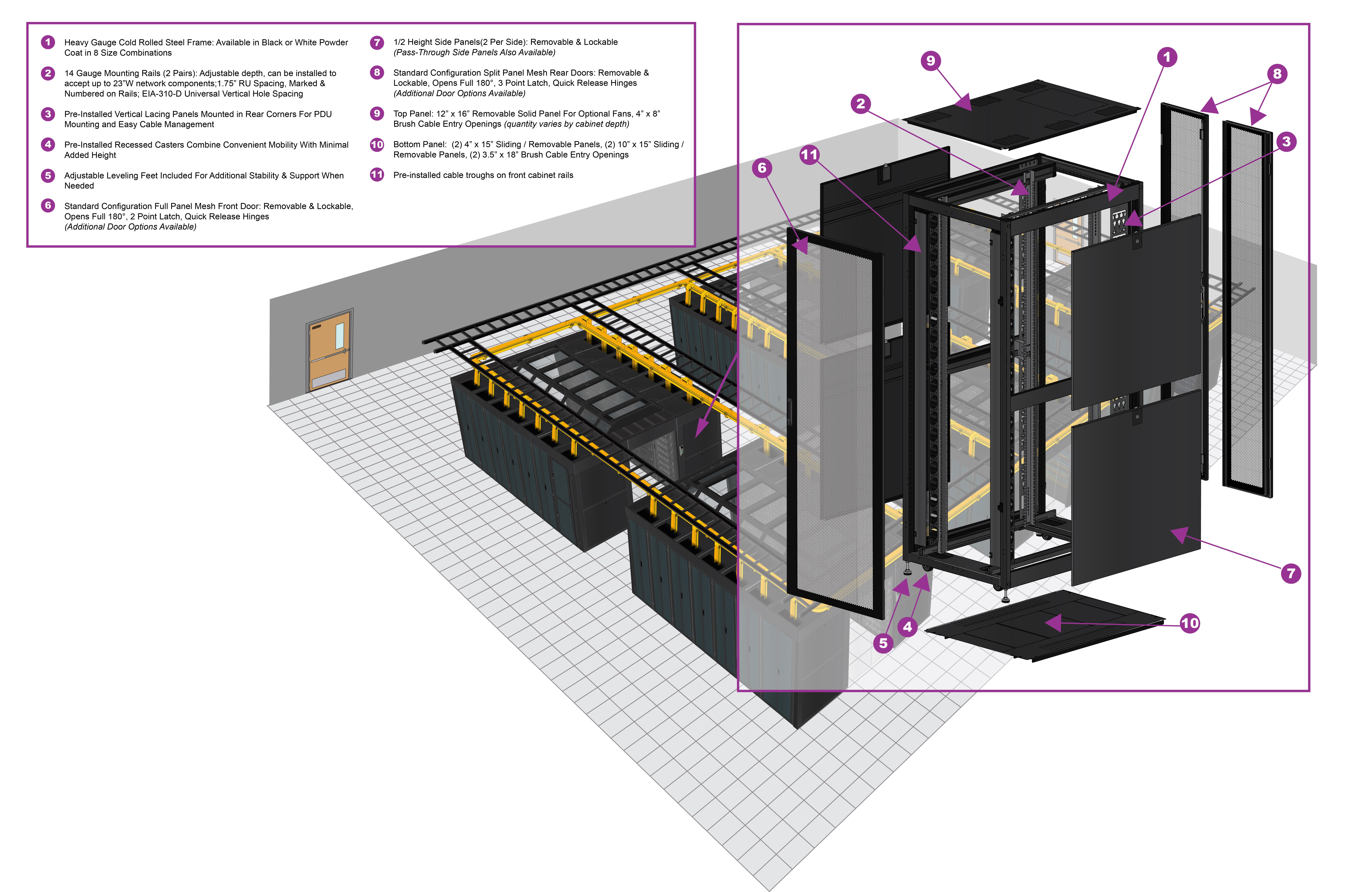

1

Heavy Gauge Cold Rolled Steel Frame:
Available in Black or White Powder Coat in 8 Size Combinations

2

14 Gauge Mounting Rails (2 Pairs):
Adjustable depth, can be installed up to 23"W network components; 1.75" RU Spacing, Marked and Numbered On Rails; 19"W, EIA-310-D Universal Vertical Hole Spacing

3

Pre-Installed Vertical Lacing Panels:
Mounted in Rear Corners for PDU Mounting & Easy Cable Management

4

Pre-Installed Recessed Casters Combine Convenient Mobility With Minimal Added Height

5

Adjustable Leveling Feet Included For Additional Stability and Support When Needed

6

Standard Configuration Full Panel Mesh Front Door: Removable and Lockable, Opens Full 180°, 2 Point Latch, Quick Release Hinges (Additional Door Options Available)

7

1/2 Height Side Panels (2 Per Side): Removable and Lockable, (Pass-Through Side Panels Also Available)

8

Standard Configuration Split Panel Mesh Rear Doors: Removable and Lockable, Opens Full 180°, 3 Point Latch, Quick Release Hinges (Additional Door Options Available)

9

Top Panel: 12" x 16" Removable Solid Panel For Optional Fans, 4" x 8" Brush Cable Entry Openings (Quantity Varies By Cabinet Depth)

10

Bottom Panel: (2) 4" x 15" Sliding / Removable Panels, (2) 10" x 15" Sliding / Removable Panels, (2) 3.5" x 18" Brush Cable Entry Openings

11

Pre-installed cable troughs on front cable rails

Network Cabinet Options

Standard Configurations (Stocked Options)

Item Number	Dimensions	Front Door	Rear Door	Cabinet Top	Color	Assembly	Spec Sheet	Tech Drawing
VC5-8842-ABS1A	31.5”W x 31.5”D x 42U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-8845-ABS1A	31.5”W x 31.5”D x 45U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-8A42-ABS1A	31.5”W x 42”D x 42U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-8A45-ABS1A	31.5”W x 42”D x 45U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-8A45-ABV1F	31.5”W x 42”D x 45U	High Density Vented	High Density Vented Split	Vented	Black	Flat Packed
VC5-8A45-ABS2A	31.5”W x 42”D x 45U	High Density Vented	High Density Vented Split	Solid	White	Pre-Assembled
VC5-8A48-ABS1A	31.5”W x 42”D x 48U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-8A48-ABS1A	31.5”W x 42”D x 48U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-8A48-ABS2A	31.5”W x 42”D x 48U	High Density Vented	High Density Vented Split	Solid	White	Pre-Assembled
VC5-8A52-ABV1F	31.5”W x 42”D x 52U	High Density Vented	High Density Vented Split	Vented	Black	Flat Packed
VC5-8242-ABS1A	31.5”W x 48”D x 42U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-8245-ABS1A	31.5”W x 48”D x 45U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-8245-ABV1F	31.5”W x 48”D x 45U	High Density Vented	High Density Vented Split	Vented	Black	Flat Packed
VC5-8245-ABS2A	31.5”W x 48”D x 45U	High Density Vented	High Density Vented Split	Solid	White	Pre-Assembled
VC5-8248-ABS1A	31.5”W x 48”D x 48U	High Density Vented	High Density Vented Split	Solid	Black	Pre-Assembled
VC5-8248-ABS2A	31.5”W x 48”D x 48U	High Density Vented	High Density Vented Split	Solid	White	Pre-Assembled
VC5-8252-ABV1F	31.5”W x 48”D x 52U	High Density Vented	High Density Vented Split	Vented	Black	Flat Packed

Click on the item SKUs above for additional information about specific products or contact your Vericom representative.

Special Order Item Number Structure for VC5 Network Cabinets - 31.5" (800mm) Width
